THREADOLETS
(3000#, 6000#)

Butt Weld Pipe Fittings

Socket Weld Pipe Fittings

Screwed Pipe Fittings

Forged Steel outlet Fittings

Tolerances of Pipe Fittings

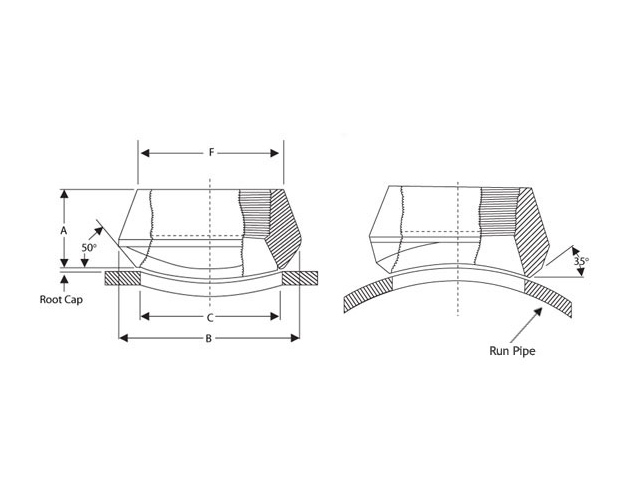

outlet Size A B C F
                (in mm)
Nominal Bore 3000 #</td> 6000 # 3000 # 6000# 3000# 6000# 3000# 6000#
½ 25.4 31.8 34.9 44.5 23.8 19.1 50.8 63.5
¾ 27.0 36.5 44.5 50.8 30.2 25.4 63.5 79.3
1 33.3 39.7 54.0 61.9 36.5 33.3 73.0 92.0
1 1/4 33.3 41.3 65.1 69.9 44.5 38.1 92.0 114.3
1 1/2 34.9 42.9 73.0 82.6 50.8 49.2 111.1 130.1
2 38.1 52.4 88.9 103.2 65.1 69.9 123.8 152.4
2 1/2 46.0 - 103.2 - 76.2 - 149.2 -
3 50.8 - 122.2 - 93.7 - 174.6 -
4 57.2 - 152.4 - 120.7 - 244.0 -
