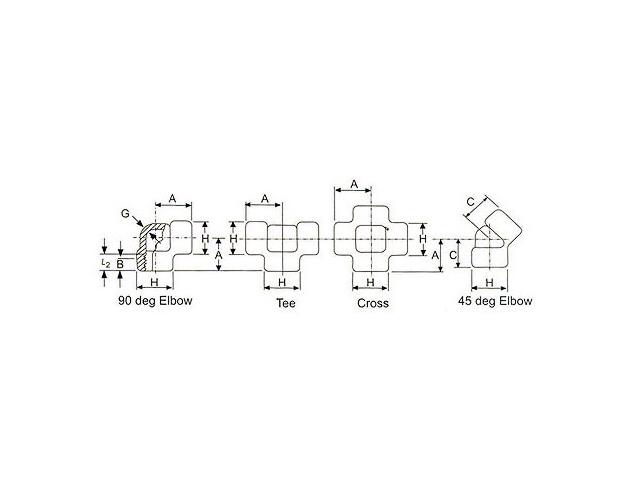

| DIMENSIONS OF THREADED FITTINGS (ANSI B 16.11) (in mm) | ||||||||||||||
| Nominal Pipe Size |
||||||||||||||
| A | C | H | G | Min(1) | ||||||||||
| 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | B | L2 | |
| 1/8'' | 20.57 | 20.57 | 24.63 | 17.52 | 17.52 | 18.93 | 22.35 | 22.30 | 25.40 | 3.175 | 3.110 | 6.350 | 6.303 | 6.700 |
| 1/4'' | 20.57 | 24.63 | 28.44 | 17.52 | 18.93 | 22.35 | 22.35 | 25.40 | 33.20 | 3.175 | 3.302 | 6.604 | 8.128 | 10.205 |
| 3/8'' | 24.63 | 28.44 | 33.27 | 18.93 | 22.35 | 25.40 | 25.40 | 33.27 | 38.10 | 3.175 | 2.505 | 6.985 | 9.544 | 10.298 |
| 1/2'' | 28.44 | 33.27 | 38.10 | 44.45 | 25.40 | 28.44 | 33.27 | 38.10 | 45.97 | 3.175 | 4.089 | 8.153 | 10.922 | 13.555 |
| 3/4'' | 33.27 | 38.10 | 44.45 | 25.40 | 28.44 | 33.27 | 38.10 | 45.97 | 55.62 | 3.175 | 4.318 | 8.534 | 12.700 | 13.860 |
| 1'' | 38.10 | 44.45 | 50.80 | 28.44 | 33.27 | 35.05 | 45.97 | 55.62 | 61.97 | 3.688 | 4.978 | 9.931 | 14.732 | 17.343 |
| 1-1/4'' | 44.45 | 50.80 | 60.45 | 33.27 | 35.04 | 42.92 | 55.62 | 61.97 | 75.43 | 3.886 | 5.283 | 10.591 | 17.018 | 17.952 |
| 1-1/2'' | 50.80 | 60.45 | 76.02 | 33.05 | 42.92 | 43.68 | 61.97 | 75.43 | 84.07 | 4.013 | 5.562 | 11.074 | 17.780 | 18.376 |
| 2'' | 60.45 | 63.50 | 82.55 | 42.92 | 43.68 | 52.32 | 75.43 | 84.07 | 101.60 | 4.267 | 7.137 | 12.090 | 19.050 | 19.138 |
| 2-1/2'' | 76.20 | 82.55 | 95.25 | 52.37 | 52.32 | 63.50 | 91.94 | 101.60 | 120.65 | 5.613 | 7.645 | 15.290 | 23.622 | 28.905 |
| 3'' | 85.85 | 95.25 | 106.42 | 63..50 | 63.50 | 79.24 | 109.47 | 120.65 | 146.05 | 5.994 | 8.839 | 18.637 | 25.408 | 30.500 |
| 4'' | 106.42 | 114.30 | 114.30 | 78.24 | 78.24 | 79.24 | 146.05 | 152.40 | 152.40 | 6.555 | 11.669 | 18.684 | 27.777 | 33.000 |

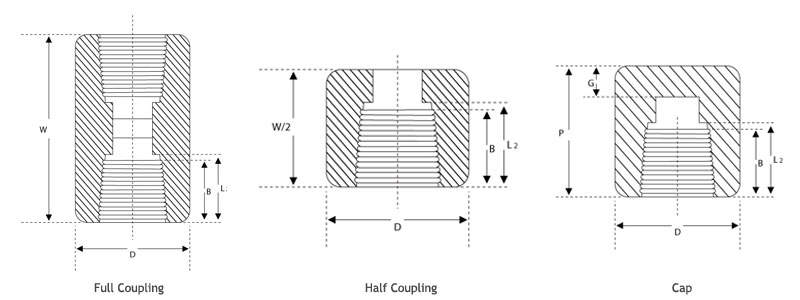

| DIMENSIOS OF COUPLINGS & CAPS (BS 3799) (in mm) | |||||||||
| Nominal Pipe Size |
End to End Couplings W |
End to End Caps P |
Outside Diameter D |
End Wall Thickness G Min |
Length of thread Min. (1) |
||||
| 3000 & 6000 | 3000 | 6000 | 3000 | 6000 | 3000 | 6000 | B | L2 | |
| 1/8'' | 31.8 | 19.1 | 15.7 | 22.4 | 4.8 | - | 6.4 | 6.7 | |
| 1/4'' | 35.1 | 25.4 | 26.9 | 19.1 | 25.4 | 4.8 | 6.4 | 8.1 | 10.2 |
| 3/8'' | 38.1 | 25.4 | 26.9 | 22.4 | 31.8 | 4.8 | 6.4 | 9.1 | 10.4 |
| 1/2'' | 47.8 | 31.8 | 33.3 | 28.4 | 38.1 | 6.4 | 7.9 | 10.9 | 13.6 |
| 3/4'' | 50.8 | 36.6 | 38.1 | 35.1 | 44.5 | 6.4 | 7.9 | 12.7 | 13.9 |
| 1'' | 60.5 | 41.1 | 42.9 | 44.5 | 57.2 | 9.7 | 11.2 | 14.7 | 17.3 |
| 1-1/4'' | 66.5 | 44.5 | 46.0 | 57.2 | 63.5 | 9.7 | 11.2 | 17.0 | 18.0 |
| 1-1/2'' | 79.2 | 44.5 | 47.8 | 63.5 | 76.2 | 11.2 | 12.7 | 17.8 | 18.4 |
| 2'' | 85.9 | 47.8 | 50.8 | 76.2 | 91.9 | 12.7 | 15.7 | 19.1 | 19.2 |
| 2-1/2'' | 91.9 | 60.5 | 63.5 | 91.9 | 108.0 | 15.7 | 19.1 | 23.6 | 28.9 |
| 3'' | 108.0 | 68.3 | 74.7 | 139.7 | 158.8 | 22.4 | 28.4 | 27.7 | 33.0 |
1.) Dimension B is minimum length of perfect thread. The length of useful thread (B plus threads with fully formed roots and flat creates) shall not be less Than L2 (effective length of external thread) required by American National Standard for Pipe Threads (ANSI B2. 1)
Class 2000 and NPS 1/8 class 6000 coupling, half couplings and caps are not included in this standard.
